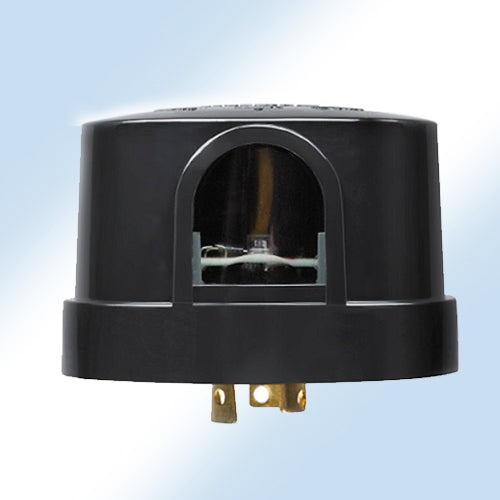

Precision's Early "Turn On" Photocontrol turns commercial signs and auto dealer lights on 30 minutes before dark. This maximizes the visibility of signs and outdoor lighting during twilight hours. Available in single and 12-pack units.
- Proven all digital design with built-in surge protection
- 100% compatible with all forms of outdoor lighting including LED
| Features | Description |
|---|---|
| Housing: | UV stabilized high-impact polypropylene |
| Sensor: | Sealed Silicon Sensor |
| Turn-on: | 1.5 foot-candles on |
| * Turn on/Turn off: | 36 FC / 60 FC |
| Switch Type: | Single-pole, single-throw. Contact position at night normally closed |
| Time Delay: | 3-5 seconds |
| Temperature Range: | -40 Degree to 170 Degree F |
| Power Consumption: | Less than 1 watt per day |
| Rated Life: | 5,000 operations minimum at rated load |
| Surge Protection: | 30 Joule MOV (Metal Oxide Varistor) |
| Base: | 125 Degree High Temp |
| Available SKUs: | ECDV-ETO ($29.25 per unit) ECDV-ETO-12 ($32.25 per unit) |
* Standard "Dusk to Dawn" Photocells turn on at 1 to 3FC and off 3 to 9FC.
Additional Information
| ECDV | ECDV-ETO, ECDV-ETO-12 |
|---|
