General Purpose 24 Hour Time Switches

Precision makes it easy to replace any other timer at great savings!

Just use a Precision Timer with a compatible mounting bracket. The timer simply snaps into your new or existing enclosure. There's no need to remove the old box. Takes 30 seconds to install.

1. General Purpose 24-Hour Time Switch with Non-Corrosive Enclosure.

For automatic on/off control of your pool filter.

Order Now
Model Voltage Switch Enclosure
CD101 120 SPST Raintight-NEMA 3
CD102 240 SPST Raintight-NEMA 3
CD103 120 DPST Raintight-NEMA 3
CD104 240 DPST Raintight-NEMA 3
CD105 120 SPDT Raintight-NEMA 3
CD106
* For 2-Speed Pumps
 240 SPDT Raintight-NEMA 3

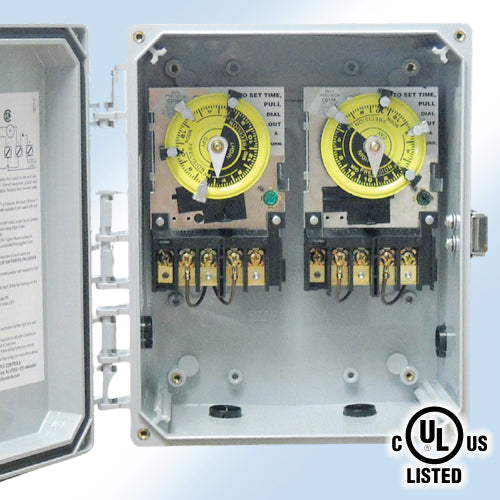

2. Two-In-One Swimming Pool Time Switches with Non-Corrosive Enclosure.

This version includes two independent timers in one enclosure to control pool filter, cleaner or heater.

Order Here
Model Mechanisms Enclosure
CD2204R CD101M & CD104M Raintight-NEMA 3
CD2104R Two CD104M Raintight-NEMA 3
CD2101R Two CD101M Raintight-NEMA 3
CD2106R*
 CD106 &
CD104		 Raintight-NEMA 3
CD2204R-211 CD101 & CD104-201 Raintight-NEMA 3
CD2204R-214 CD104 & CD104-201 Raintight-NEMA 3
* For 2-Speed Pumps

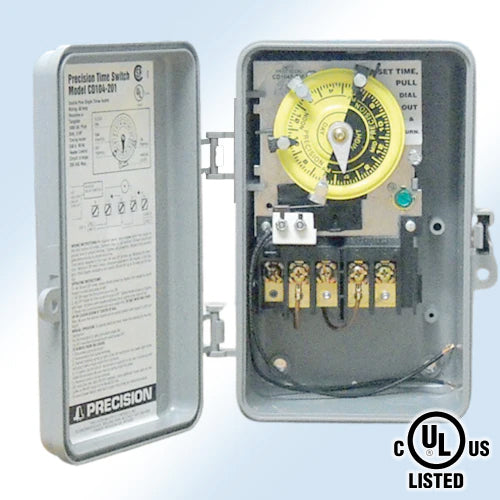

3. General Purpose 24 Hour Timer Switch with Heater Delay Circuit (Fireman's Switch)

Two circuit time switch turns off heater 20 minutes before filter pump turns off.

Order Here
Model Voltage Switch Enclosure
CD101P-201 120 SPST Raintight-NEMA 3
CD104P-201 240 DPST Raintight-NEMA 3
CD104-201-IC* 240 DPST N/A*
Available with metal NEMA 3 enclosure.
* Fit's into Internatic® T104-201 enclosure

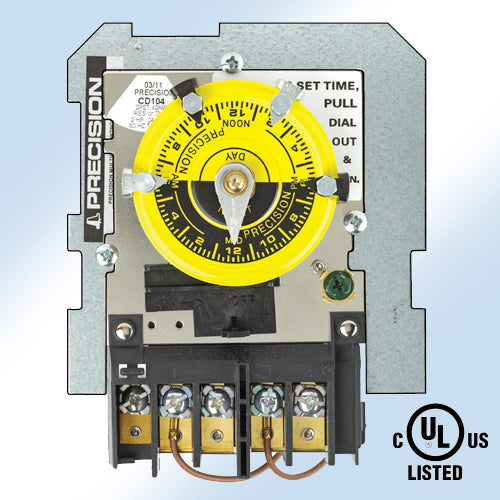

4. Timer Switch Mechanism Only

Precision timer movement with adaptor bracket used to replace and existing competitor's timer. Our timers easily fit directly into an Intermatic®, Paragon®, or Tork® enclosure.

No special tools or hardware required.

Order Here
Model Volt Switch Amps Replaces Model
CD101-IC 120 SPST 40 T101, T101P,
T101R
CD102-IC 240 SPST 40 T102, T102P,
T102R
CD103-IC 120 DPST 40 T103, T103P,
T103R
CD104-IC 240 DPST 40 T104, T104P,
T104R
CD105-IC 120 SPDT 40 T105, T105P,
T105R
CD106-IC 240 SPDT 40 T106, T106P,
T106R
CD104-201-IC* 240 DPST 40 T104-201R
These are all 24-Hour Time Switch Mechanisms with IC Adaptive Bracket
* With Heater-Delay Circuit

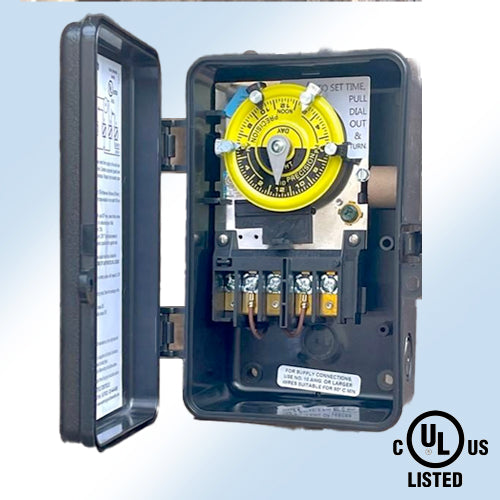

5. Hot Water Heater Timer

SAVE from 10% to 25% off your annual electric water heating bill with our hot water heater timer! Now you can program your Hot Water Heater to turn off during peak utility demand and on at night when rates are low. Check with your local utilities for peak / off peak times.

Order Here
Precision Model Volt AMP Price
CD104-20 240 VAC 40 $65.00
CD104-20-IC (timer mechanism only, no box) 240 VAC 40 $54.00
