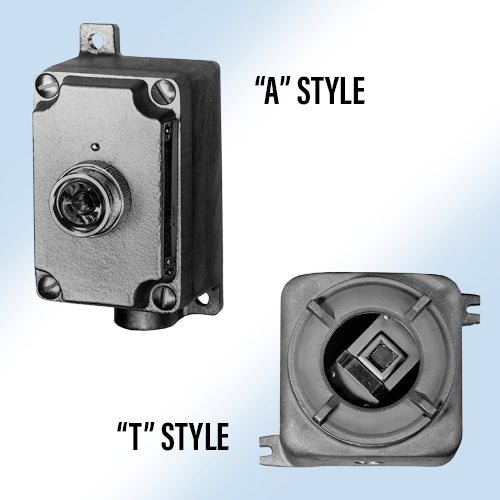

Explosion-proof photo controls made with cast aluminum housing. Removable threaded cover with a glass window on "T" Series.
| Features | Description |
|---|---|
| Housing: | Explosion-proof cast aluminum housing Removable threaded cover with glass window on "T" Series |
| Compliances: | N.E.C. Hazardous (Classified) Locations: Class I, Division 1 & 2, Groups C, D Class II, Division 1 & 2, Groups E, F, G Class III NEMA 7 CD, 9 EFG |
| Turn-on: | 2 to 2.5 foot-candles |
| Dimensions A Series: | 4-5/8'' high, 3" wide, 3-1/8" deep |
| Dimensions T Series: | 4-3/4" wide, 4-1/2" deep |
Explosion Proof A and T Series Guideline
| Precision Model | Switch | Voltage | Rating | Price |
|---|---|---|---|---|
| A105EP* | SPST | 120 VAC | 1100 VA | $742.15 |
| A1068EP* | SPST | 208-277 VAC | 1800 VA | $779.00 |
| A347EP | SPST | 347 VAC | 1000 VA | $766.65 |
| T15EP | SPST | 120 VAC | 1100 VA | $793.85 |
| T168EP | SPST | 208-277 VAC | 1100 VA | $812.30 |
| T347EP | SPST | 347 VAC | 1000 VA | $965.05 |
| T19EP | SPST | 480 VAC | 1800 VA | $855.40 |
| T30EP | SPST | 120 VAC | 3000 VA | $960.35 |
| T368EP | SPST | 208-277 VAC | 3000 VA | $966.45 |
* A Series - Add 5/8" for each wall mounting lug & 7/8" for lens extension.
Additional Information
| Explosion Proof A T | A105EP, A1068EP, A347EP, T15EP, T168EP, T19EP, T30EP, T347EP, T368EP |
|---|
