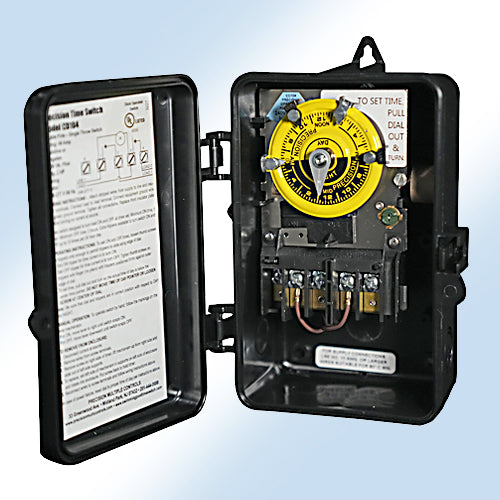

For automatic on/off control of your pool filter with optional non-corrosive enclosure. Please refer to our chart below to find the correct model. You have the choice of voltage (120 or 240), Switch Type (SPST, DPST, SPDT). A non-corrosive NEMA III enclosure is INCLUDED.
Controls:
| Features | Description |
|---|---|
| Dial: | 24-hour dial. Supplied with 2 ON and OFF trippers |
| Switch Ratings: | 40 amps resistive or tungsten, 1000 VA pilot duty, 2 H.P at 120 or 240 volts |
| Terminals: | Captive pressure-type terminal screws for up to 8 AWG wire |
| Operations: | Up to 10 ON/OFF operations per 24 hours. With manual ON/Off switch that allows the circuit to be operated without disturbing schedule setting |
| Minimum Setting: | 1 Hour between ON & OFF 2 Hours between OFF & ON |
| Enclosure: | Non-corroding all plastic NEMA 3 case; 9-1/2" high, 5-3/8" wide, 3-1/4" deep. Plastic latch with a hole for lock, holds permanently, attached side hinged door closed with hanging bracket and 2 holes for mounting |
| Knockouts: | 5 combination knockouts loaded as follows; 1/2" to 3/4", 2 on the bottom, 2 on the side and 1 on the back |
Specifications:
| Model | Voltage | Switch | Enclosure |
|---|---|---|---|
| CD101 | 120 | SPST | Raintight-NEMA 3 |
| CD102 | 240 | SPST | Raintight-NEMA 3 |
| CD103 | 120 | DPST | Raintight-NEMA 3 |
| CD104 | 240 | DPST | Raintight-NEMA 3 |
| CD105 | 120 | SPDT | Raintight-NEMA 3 |
| CD106 * For 2-Speed Pumps |
240 | SPDT | Raintight-NEMA 3 |
Additional Information
| CD 101-106 | CD101, CD101-SP (6 PACK), CD102, CD102-SP (6 PACK), CD103, CD103-SP (6 PACK), CD104, CD104-SP (6 PACK), CD105, CD105-SP (6 PACK), CD106, CD106-SP (6 PACK) |
|---|
