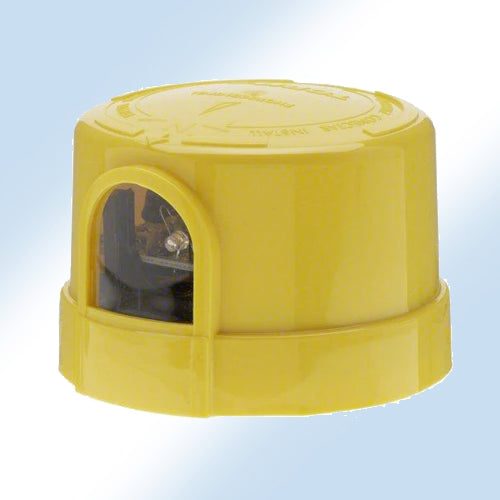

Fully rated (Culs) 480V locking type photocontrol. Load :1800 WATTS / 1800 VA and 5A-E BALLAST
| Features | Description |
|---|---|
| Housing: | UV stabilized high impact polypropylene |
| Photocell: | Filtered Silicon sensor |
| Turn-on: | 1 to 3 foot-candles |
| Turn-on/ off Ratio: | 1:1.5 |
| Switch Type: | Solid State SPST relay with zero cross switching |
| Temperature Range: | -40 Degree to 158 Degree F |
| Power Consumption: | 1.1 watts average at 120 VAC |
| Rated Life: | 5,000 operations minimum at rated load |
| Surge Protection: | MOV (Metal Oxide Varistor) 320 joule rating. Add suffix "MOV" |
| Dimensions: | 3.07" diameter x 2.15" high |
Load: 1800 Watts /1800 VA 5A-E Ballast
