Receptacles for locking-type photo controls and low profile receptacle covers. Mounting accessories designed specifically for the street lighting industry and the outdoor lighting equipment manufacturer. Conforms to ANSI/NEMA Standards.
| Model | Description |
|---|---|

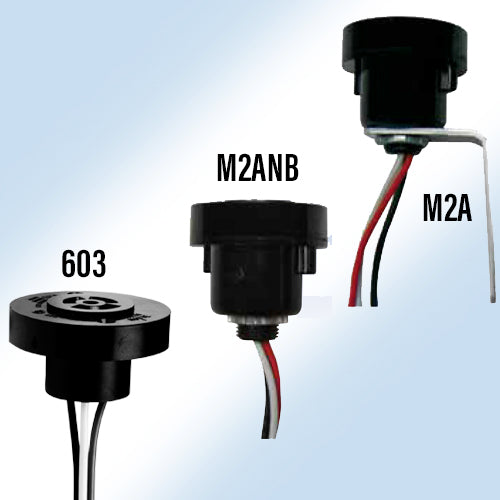

| M2A | Locking-type receptacle with an aluminum angle bracket for wood pole, cross arm or wall mounting. With all-weather locking type receptacle and Lexan housing. With 14 inch 14 AWG color-coded wire as follows: line-black, neutral-white, load red. Threaded stem fits through a 1/2 inch knockout. Dimensions: 2-5/8" diameter (socket), 2-5/8" high (including stem). Bracket: 4-1/2 high, 2-3/4" deep. |
| M2ANB | Same as M2A without aluminum angle bracket. |
| 603-14 | Locking-type receptacle only. With 14 inch 14 AWG, 105ûC, 600V,MTW wire and .150 diameter countersunk holes on 1-15/16 inch centers (without housing and angle bracket). Dimensions: 2-5/8" diameter (socket), 1-3/8" diameter (base), 1-29/64" high. |
| M2CA | Consists of a 603 receptacle with aluminum mounting ring tapped, two 6/32 x 2 inch aluminum mounting screws, and sponge rubber gasket. |
| Note: | All receptacles have a load rating of 15 amps at 120 volts, 10 amps at 240 volts, and 5 amps at 480 volts. |
Photo Control Accessories Receptacle Replacement Comparison Chart
| Precision Model | Fisher Pierce | Ripley | Dark-to-Light | Voltage | Rating | Price |
|---|---|---|---|---|---|---|
| M2A | FP5476-71 | 5927-L | DUR-10336 | 120-480 | 1800 | $14.35 |
| M2ANB* | FP5476-73 | 5926 | - | 120-480 | 1800 | $13.55 |
| 603-14** | FP902-1 | 5241-2 | - | 120-480 | 1800 | $8.35 |
| M2CA | - | 5241-3 | - | 120-480 | 1800 | $8.50 |
* cULus Certified
** UL Recognized
Additional Information
| Photo Control Accessories | 603-14, M2A, M2ANB, M2CA |
|---|
