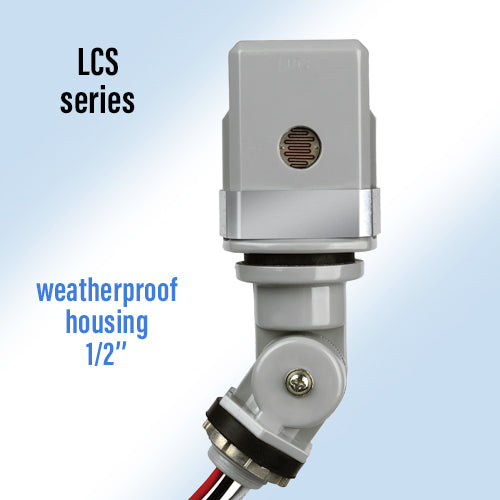

Lumatrol Low Voltage Stem Mount Photocontrols

Lumatrol Low Voltage Stem Mount Photocontrols

$71.55
$71.55
Sale Sold out
Material
View full details

LCS Series - Specifically designed for a 12 volt DC or 24 volt AC/DC battery operated light source or low voltage control circuits. Rated at 70 degree C to operate in high temperatures near solar modules.

IMPORTANT - Do not exceed 16 volts on 12 VDC models or 36 volts on 24 VDC/VAC models. Exceeding those limits will damage the control and void the warranty. In some cases, you may want to consider an external fuse.

Features Description
Housing: Weatherproof Lexan housing
Photocell: Silicon Sensor
Turn-on: 1 foot-candles
Turn-on/ off Ratio: 1:1.5
Time Delay: 1 to 5 seconds off only
Switch Type: Single-pole, single-throw. Contact position at night normally closed
Temperature Range: -40 Degree to 158 Degree F

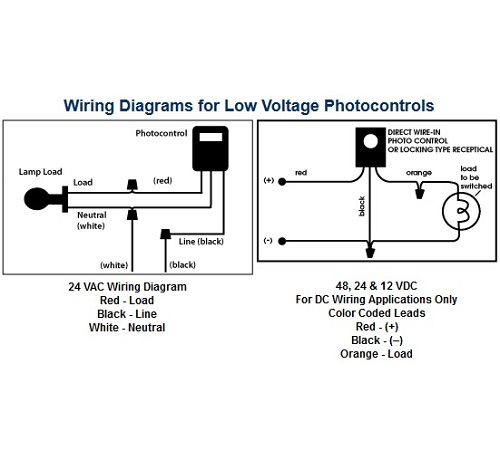

Lead Wire: Moisture proof, color coded lead wire. Wire length: 6 inches
Load Rating: 7 AMPs non-inductive
Dimensions: 3-1/2" long, 1-1/4" wide, 1/4" deep

LCS Series Specification Chart

Precision Model Voltage Rating Price
LCS612D 12 VDC 7 amps $53.10
LCS624D 24 VDC 7 amps $54.60
LCS624A 24 VAC 7 amps $54.60

Additional Information

LCS Series LCS612D, LCS624A, LCS624D
