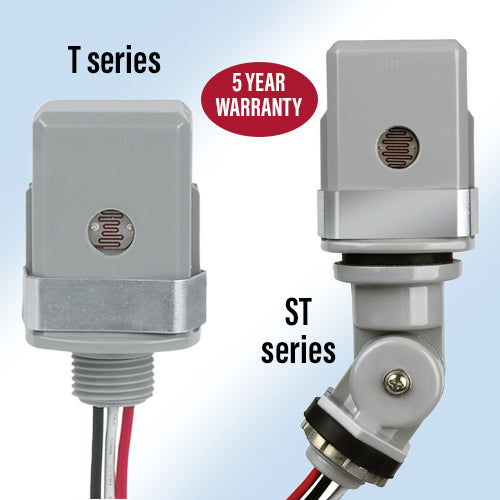

Swivel T-Series (ST) is equipped with a swivel mount which allows the installer to swivel light-sensitive element to the best position for operation.
| Features | Description |
|---|---|
| Housing: | Weatherproof Lexan housing or vandal proof die-cast aluminum housing. (Model T15AL only) |
| Photocell: | Broad surface sensing element |
| Turn-on: | 1 to 3 foot-candles. External light level slide allows field adjustment between 3 to 10 foot-candles |
| Turn-on/ off Ratio: | 1:3 |
| Switch Type: | Single-pole, single-throw. Contact position at night normally closed |
| Temperature Range: | -40 Degree to 158 Degree F |
| Lead Wire: | Moisture proof, color coded lead wire. Wire length: 6 inches |
| Threaded Stem: | 1/2 inch-14 thread, and fits 1/2 inch knock out. Swivel T-Series (ST) is equipped with a swivel mount which allows the installer to swivel light-sensitive element to the best position for operation |
| Dimensions T Series: | 2'' high, 1-1/2'' wide, 1'' deep |
| Dimensions ST Series: | 2'' high, 1-1/2'' wide, 1'' deep (body); 2'' high, (stem) |
| Dimensions ET Series: | 3-1/2'' long, 1-1/4'' wide, 1-1/4'' high |
Lumatrol T, ST, and ET Series Replacement Comparison Chart
| Model | Intermatic | ALR | Tork | Voltage | Rating | Price |
|---|---|---|---|---|---|---|
| ST15* | K1121 / K1221 | SAT-15 / SPT168 | 3020 / 2001 | 120 | 1100 VA | $22.45 |
| T15* | K4121 | AT15 / PT-15 | 2101 | 120 | 1100 VA | $18.50 |
| ST168* | K4224 / K4222 / K4233 | SAT-168 / SPT168 | - | 208-277 | 1100 VA | $24.30 |
| T168* | K4124 / K4122 / K4133 | AT168 / PT168 | 2104 | 208-277 | 1100 VA | $20.20 |
| ST19** | K4235 | SAT-19 / SPT168 | - | 480 | 1800 VA | $35.85 |
| T19** | K4135 | AT19 / PT19 | - | 480 | 1800 VA | $33.90 |
| ST347** | - | - | - | 347 | 1800 VA | $29.30 |
| ET15* | - | TL115 | 2001 | 120 | 1100 VA | $22.45 |
| ET168* | - | TL168 | 2002 | 208-277 | 1100 VA | $24.30 |
| T15DV | EK4036S | - | 28124 | 120-277V | 1800 VA | $19.80 |
| ST15DV | EK4236 | - | 255124 | 120-277V | 1800 VA | $28.50 |
** Dimensions: 3" high, 2" wide, 1 3/8" deep
* cULus Certified
Additional Information
| Lumatrol ET ST Series | ET168, ET15, ST15, ST168, T168, ST19, T19, ST347, T15, ST-DV, T15-DV |
|---|
