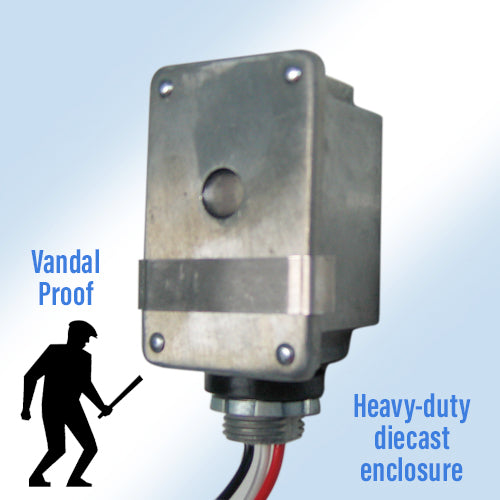

Vandal Proof Series - Cast Aluminum Housing photo controls - Designed for those locations where high vandalism creates high maintenance. The heavy-duty cast aluminum housing is 20 times more resistant to high-impact objects (i.e. rocks, bats or small projectiles) than plastic housing.
| Features | Description |
|---|---|
| Housing: | Vandal proof die-cast aluminum housing |
| Photocell: | Broad surface sensing element |
| Turn-on: | 1 to 3 foot-candles. External light level slide allows field adjustment between 3 to 10 foot-candles |
| Turn-on/ off Ratio: | 1:3 |
| Switch Type: | Single-pole, single-throw. Contact position at night normally closed |
| Time Delay: | Minimum 15 seconds |
| Temperature Range: | -40 Degree to 170 Degree F |
| Lead Wire: | Moisture proof, color coded lead wire. Wire length: 6 inches |
| Threaded Stem: | 320 joule MOV (Metal Oxide Varistor) |
| Dimensions: | 3" high, 2" wide, 1-3/8" deep |
As the controlling element of the total lighting package (fixture, lamp ballast) and the least costly component, it is most important that the control continue to function under all adverse conditions.
Die-Cast Aluminum Photo Controls Replacement Comparison Chart
| Precision Model | Intermatic | ALR | Tork | Voltage | Rating | Price |
|---|---|---|---|---|---|---|
| T15AL* | - | AT15 | 2101 | 120 | 2000 VA | $22.30 |
| T168AL | - | - | - | 208-277 | 1800 VA | $30.85 |
| T20AL | K4236C | AT20 | 2107 | 105-285 | 1900 VA | $34.85 |
| T30AL | - | - | - | 105-285 | 3000 VA | $36.05 |
| T368AL | - | - | - | 208-277 | 3000 VA | $34.15 |
* cULus Certified
Additional Information
| Die-Cast Photocontrols | T15AL, T168AL, T20AL, T30AL, T368AL |
|---|
