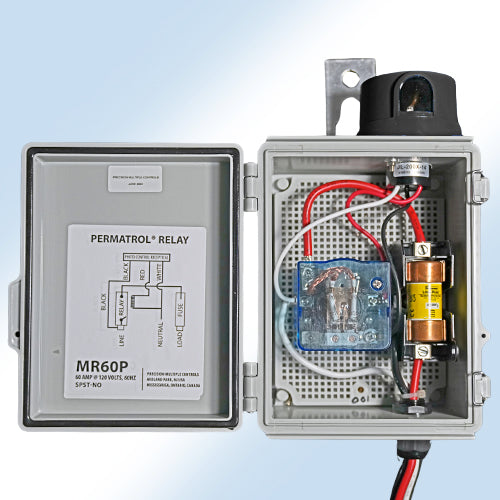

One contactor covers all applications. Electromechanical Relays are energized by a single photocontrol, providing centralized switching for a group of light fixtures. Heavy duty magnetic contactor can control either 30 amp or 60 amp lighting loads from one centralized switching location. Excellent for street and highway lighting where the control of multiple circuits is practical and desirable.
Permatrol Electromechanical Relay Specifications
| Features | Description |
|---|---|
| Switch Type: | SPST - Normally Open DPST - Normally Open |
| Operation: | Heavy-duty electromagnetic relay rated for either 30 or 60 amps at 600 VAC |
| Dimensions: | 7-7/8" high, 8-5/8" high including a mounting bracket, 6" wide, 3-9/16" deep |
Permatrol Electromechanical Relay Guideline
| Precision Model | Switch | Coil Volts | AMP Rating | Price |
|---|---|---|---|---|
| MR30P | SPST-NO | 120V | 30 | $172.60 |
| MR3030.2 | SPDT-NO/NC | 120V | 30 | $285.50 |
| TH60.1-100 | SPST-NO | 120V | 10-60 | $274.55 |
| **TH60.1-100N | SPST-NO | 120V | 10-60 | $269.50 |
| MR60P | SPST-NO | 120V | 60 | $274.55 |
| MR6060P-NF | DPST-NO | 120V | 60 | $311.55 |
Note: All Permatrol models have normally open contacts and come standard with normally closed (at night) photocell.
NF Version stands for "Non-Fused"
Additional Information
| Electromechanical Relays | MR30P, MR6060P-NF, MR60P, MR3030.2, TH60.1-100, **TH60.1-100N |
|---|
