Photo Controls for Airway Obstruction Lighting. Built-in time delay to prevent false cycling for off switching modes. Meets all ANSI Standards. Conforms to FAA/FCC requirements of 35 FC On and above 60 FC Off.

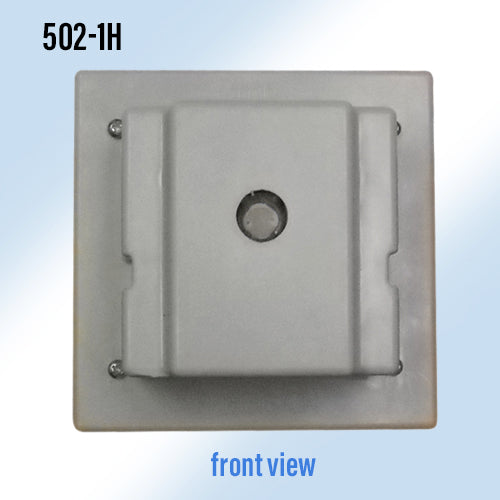

Hard Wire FAA/FCC Photocontrol
Photocontrol for mounting onto a junction box - 4 3/4" x 4 3/4" splice box. Designed for new obstruction lighting applications or as a direct replacement for Unimar, ABB/SAC, Hughey & Phillips or Crouse Hinds models.
Precision has been manufacturing photo controls for over 50 years and believes in the building block approach giving the customer the best value for the project. Buy just what you need as opposed to paying for features you don't need and will never need or use.
Most applications can be handled with an SPST 10 AMP load rating. Our model PC 502-1 offers considerable cost savings over competitive models with 30 AMP load rating and 2 SPST contacts.
The 502 Series is designed to install on standard 4-3/4 x 4-3/4 splice boxes (Appleton FCD-2-75A, Killark 2FDC-2, Crouse Hinds FD-2255A). Please note on the backside of the control housing there are four sets of hole locations. The outside holes (those nearest the outside flange) are for the standard 4-3/4" x 4-3/4" splice box stocked by electrical distributors. The inside holes are for replacing existing Crouse Hinds obstruction controls only. Please note the differences and punch out only the holes you will require for your installation. Weather tight gasket is in place and mounting screws are provided. All electronic circuitry, terminal block, and relays are contained within the molded housing. The splice box is not furnished as they are available locally. Request a quote, if you need a splice box.
Hard Wire FAA/FCC Photocontrol Features
| Features | Description |
|---|---|
| H Model Compliance: | "H" models comply to FAA/FCC specs 35 FC on / 60 FC off for Red medium intensity |
| L Model Compliance: | "L" models comply to FAA/FCC specs for On/Off between 2-5 FC for White strobe lights |
| Time Delay: | Time delay to prevent false switching |
| Housing: | All weather ABS housing with weather tight gasket and mounting screws |
| Mount: | 2 sets of mounting holes provided to fit onto standard 5''x 5'' splice box as well as Crouse Hinds splice box which are 3-1/4 on center |
| Surge Protection: | Standard surge protection provided |
| Fail Safe Operation: | DPDT N/O contacts assure "lights on" in the event controller fails |
Hard Wire FAA/FCC Photocontrol Replacement Comparison Guideline
| Precision Model | Hughey & Philips | Crouse Hinds | ABB/SAC | Unimar | Voltage | Rating | Switch | Light Level | Price |
|---|---|---|---|---|---|---|---|---|---|
| PC-502-1H | - | - | - | - | 120 V | 10 AMP | SPST | 35 FC ON / 58FC OFF | $394.50 |
| PC-502-2H | - | - | - | - | 120 V | 30 AMP | 2-SPST | 35 FC On / 58 FC OFF | $384.50 |
| PC-502-2L | PC800-120V | PEC 52009 | PCR-11 | 18001-003 | 120 V | 30 AMP | 2-SPST | ON/OFF 2-5FC | $384.50 |
| PC-502-4L | - | - | - | - | 240 V | 30 AMP | 2-SPST | On/Off 2-5 FC | $394.50 |
| PC-502-4H | PC800-240V | PEC 52009-1 | PCR-13 | 18002-003 | 240 V | 30 AMP | 2-SPST | 35 FC On / 58 FC Off | $394.50 |
Additional Information
| FAA FCC Hard Wire | 502-1H 502-2H, 502-2L, 502-4H, 502-4L |
|---|
