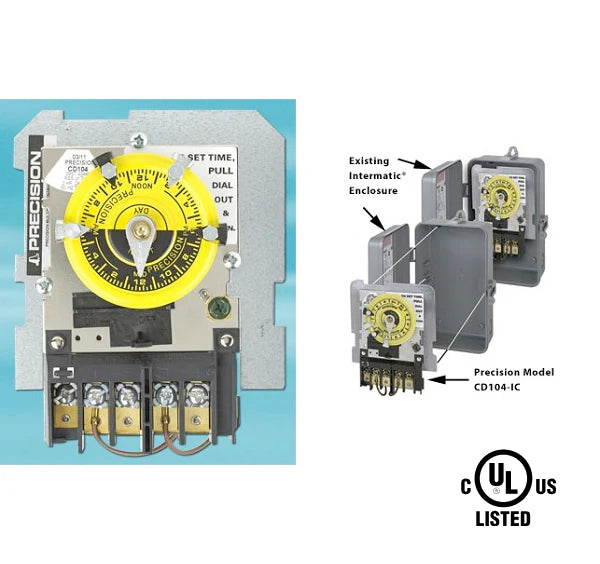

Snaps into Intermatic, Tork or Paragon timer enclosures, no tools or hardware required. Just three Precision compatible brackets allow direct replacement in all NEMA I and NEMA III enclosures of all popular models. Please refer to our chart below to find the correct model. You have the choice of voltage (120 or 240), Switch Type (SPST, DPST, SPDT). A non-corrosive NEMA III enclosure is NOT INCLUDED.
Specifications:
| Features | Description |
|---|---|
| Dial: | 24-hour dial. Supplied with 2 ON and OFF trippers |
| Switch Ratings: | 40 amps resistive or tungsten, 1000 VA pilot duty, 2 H.P at 120 or 240 volts. |
| Terminals: | Captive pressure-type terminal screws for up to 8 AWG wire. |
| Operations: | Up to 10 ON/OFF operations per 24 hours.With manual ON/Off switch that allows the circuit to be operated without disturbing schedule setting. |
| Minimum Setting: | 1 Hour between ON & OFF 2 Hours between OFF & ON. |
| Enclosure: | NOT INCLUDED |
| Knockouts: | N/A |
| *Intermatic | *Tork | *Paragon | Precision Timer with Enclosure |
Precision Timer Only (NO Enclosure) |
Voltage | Switch |
|---|---|---|---|---|---|---|
| T101 T101P T101R |
1101 110N |
P101 P101-00P 4001-00 |
CD101 | CD101-IC CD101-TC CD101M |
120 | SPST |
| T102 T102P T102R |
1102 1102P |
P102 P102-00P 4002-00 |
CD102 | CD-102-IC CD102-PC CD102-TC CD102M |
240 | SPST |
| T103 T103P T103R |
1103 1103 |
P103 P103-00P 4003-00 |
CD103 | CD-103-IC CD103-PC CD103-TC CD101M |
120 | DPST |
| T104 T104P T104R |
1104 1104P |
P104 P104-00P 4014-71 |
CD104 | CD-104-IC CD104-PC CD104-TC CD104M |
240 | DPST |
| T105 T105P T105R |
N/A | N/A | CD105 | CD105-IC CD105M |
120 | SPDT |
| T106 T106P T106R |
N/A | N/A | CD106 | CD106-IC CD106M |
240 | SPDT |
| T101-201R T101-201P |
N/A | N/A | CD101-201 | CD101-201M with heater delay circuit |
120 | SPST |
| T104-201R | N/A | N/A | CD104-201 | CD104-201M with heater delay circuit |
240 | DPST |
"IC" replaces Intermatic
"PC" replaces Paragon
"TC" replaces Tork
"M" replaces Precision
Fireman's Switch Models: CD104-201-IC (240v, DPST) and CD101-201-IC (120v, SPST)
SPST - Single Pole, Single Throw
DPST - Double Pole, Single Throw
SPDT - Single Pole, Double Throw
* Important Clarification - Precision Multiple Controls, Inc. does NOT manufacture or sell Intermatic, Paragon, or Tork timers. We (Precision) manufacture and sell our own timers with compatible brackets that allow our timers to fit directly into our competitors' enclosures.
- Intermatic is the registered trademark of Intermatic Corporation.
- Tork is the registered trademark of NSI Industries
- Paragon is the registered trademark of Paragon Electrical Products.
Additional Information
| CD-IC | CD101-201-IC-SP (6 PACK), CD101-201M, CD101-IC, CD101-IC-SP (6 PACK), CD101-PC, CD101-TC, CD101M, CD102-IC, CD102-IC-SP (6 PACK), CD102-PC, CD102-TC, CD102M, CD103-IC, CD103-IC-SP (6 PACK), CD103-PC, CD103-TC, CD103M, CD104-201-IC-SP (6 PACK), CD104-201M, CD104-IC, CD104-IC-SP (6 PACK), CD104-PC, CD104-TC, CD104M, CD105-IC, CD105-IC-SP (6 PACK), CD105M, CD106-IC, CD106-IC-SP (6 PACK), CD106M |
|---|
