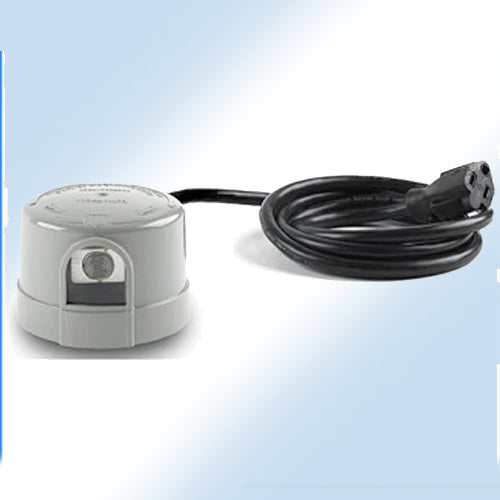

Streetlight power adapters provide auxiliary AC power and include a 6 ft. grounded power cord with a grounded receptacle for easy access to 120 volts or 240 volts from the light pole. It mounts onto a standard NEMA type receptacle. Applications include: WIFI, WIFI MAX, cell phone, pole mounted transmitters, security cameras, and traffic monitoring. 24/7 integrated photocontrol operation in one low-profile housing unit.
| Features | Description |
|---|---|
| Housing: | UV stabilized high-impact polypropylene |
| Photocell: | Broad surface sensing element |
| Turn-on: | 1 to 3 foot-candles |
| Turn-on/ off Ratio: | 1:3 |
| Time Delay: | Minimum 15 seconds |
| Switch Type: | Single-pole, single-throw. Contact position at night normally closed |
| Temperature Range: | -40 degree to 158 degree F |
| Power Consumption: | 1.1 watts average at 120 VAC |
| Rated Life: | 5,000 operations minimum at rated load |
| Surge Protection: | MOV (Metal Oxide Varistor). 320 joule rating |
Photo Control Accessories Receptacle Replacement Comparison Chart
| Precision model | Volts | photocell included | Lighting Operation | Cord Operation | Unit Price |
|---|---|---|---|---|---|
| 24/7A | 120 V | Yes | Lights on at night | 120V energized at night | $95.95 |
| 24/7B | 120 V | Yes | Lights on at night | 120V ebergized 24/7 | $97.10 |
| 24/7C | 240 V | Yes | Lights on at night | 120V energized at night | $95.95 |
| 24/7D | 240 V | Yes | Lights on at night | 120V energized 24/7 | $95.95 |
*240V models 24/7C and 24/7D are supplied with the 240V rated cord only, no plug.
