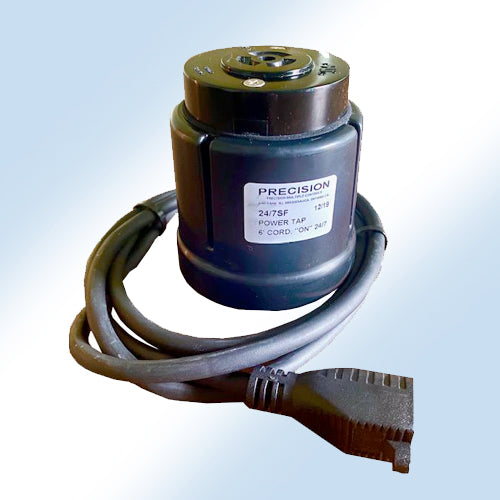

Streetlight power adapter provides auxiliary AC power direct from the street light pole. To power pole mounted traffic and security cameras. Mounts onto a standard NEMA type 3- blade base. Exisisting photocontrol or shorting cap can be remounted on top of the 24/7-SF 3-blade receptacle for uninterrupted operation of the street light. Meets ANSI-C136:10 specifications. 24/7-SF standard cord length 6' with plug. New 5-PIN model 24/7-SF-5 has pass through dimming operation.
| Features | Description |
|---|---|
| Housing | UV stabilized high-impact ploypropylene |
| Lower Base | NEMA TYPE 3-Blade Meets ANSI C-136:10 specifications |
| Upper Receptacle | 3-Blade Locking Type |
| Cord Type | 16AWG C (UL) SJOOW rated 105° C |
| Temperature Range: | -40 degree to 158 degree F |
| Rated Life: | 5,000 operations minimum at rated load |
24/7 Series Photocontrol Guideline
| Precision Model | Volts | Lighting Operation | Cord Set Operation | Price |
|---|---|---|---|---|
| 24/7SF | 120V | Lights on at night | Energized 24/7 | $111.55 |
| 24/7SF-30 | 120V | Lights on at night | Energized 24/7 | $131.50 |
| 24/7SF-30P | 120 V | Lights on at night | Energized 24/7 | $143.95 |
24/7SF Supplied with 6' Cord and Female Plug attached
24/7-SF-30 Supplied with 30' Cord
24/7-30P Supplied with 30' Cord. Plug unattched included.
