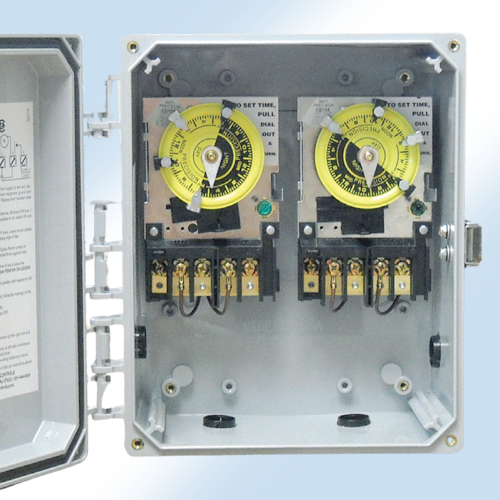

This version includes two independent timers in one enclosure to control your pool filter, cleaner or heater. Please review the chart below to select the correct combination for your pool.
| Model | Mechanisms | Enclosure |
|---|---|---|
| CD2204R | CD101M & CD104M | Raintight-NEMA 3 |
| CD2104R | Two CD104M | Raintight-NEMA 3 |
| CD2101R | Two CD101M | Raintight-NEMA 3 |
|
CD2106R For 2 Speed Pump Applications |
CD106 & CD104 | Raintight-NEMA 3 |
| CD2204R-211 | CD101 & CD104-201 | Raintight-NEMA 3 |
| CD2204R-214 | CD104 & CD104-201 | Raintight-NEMA 3 |
Specifications:
| Features | Description |
|---|---|
| Dial: | 24-hour dial. Supplied with 2 ON and OFF trippers |
| Switch Ratings: | 40 amps resistive or tungsten, 1000 VA pilot duty, 2 H.P at 120 or 240 volts. |
| Terminals: | Captive pressure-type terminal screws for up to 8 AWG wire. |
| Operations: | Up to 10 ON/OFF operations per 24 hours.With manual ON/Off switch that allows the circuit to be operated without disturbing schedule setting. |
| Minimum Setting: |
1 Hour between ON & OFF 2 Hours between OFF & ON. |
| Enclosure: | 8.54" wide x 10.54" high NEMA III non-corrosive enclosure. |
| Knockouts: | Unit comes standard with two bottom knockouts, 7/8" diameter (see below image for details). Two additional side knockouts are available upon request. |
Additional Information
| 2in1 | CD2101R, CD2104R, CD2106R, CD2204R, CD2204R-211, CD2204R-214 |
|---|
